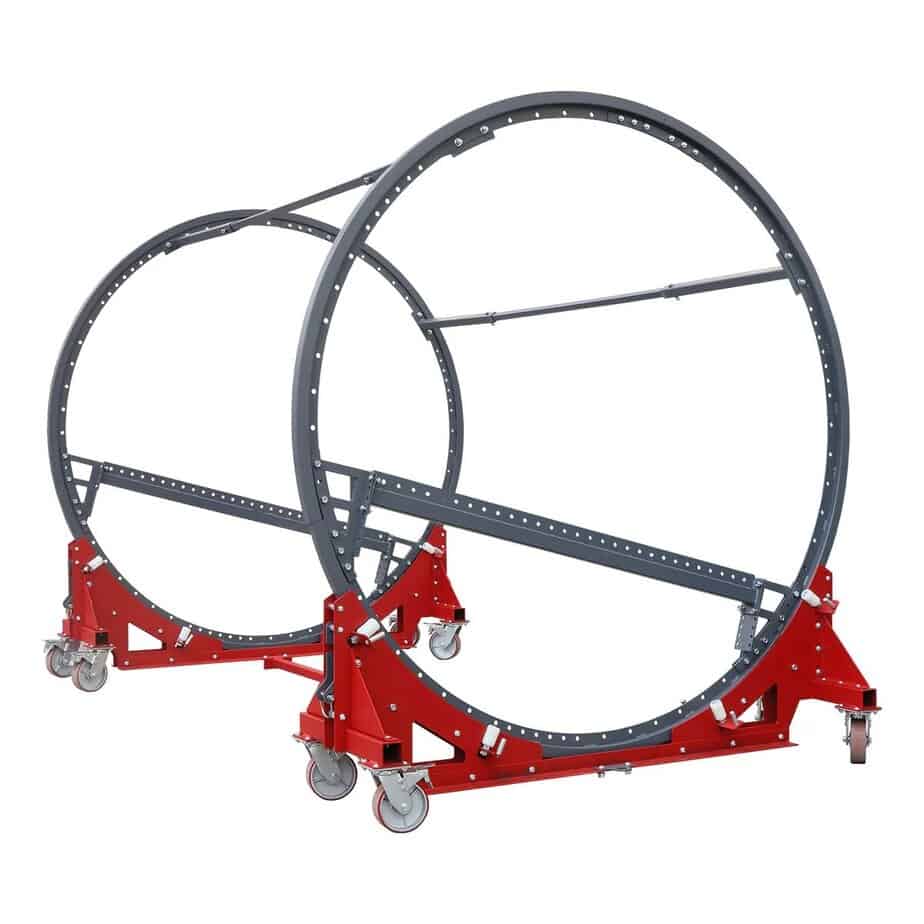

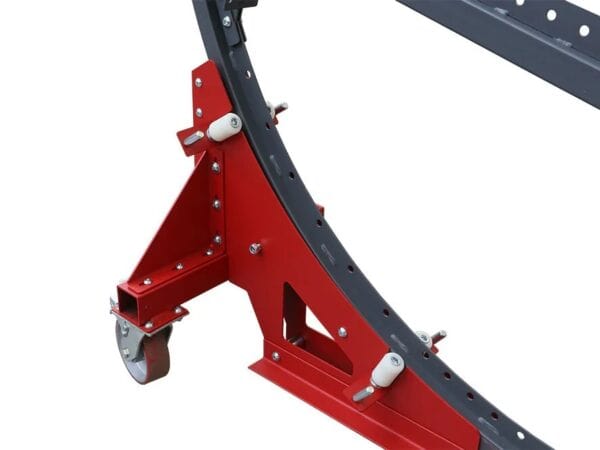

Circular Car Rotisserie ct07a

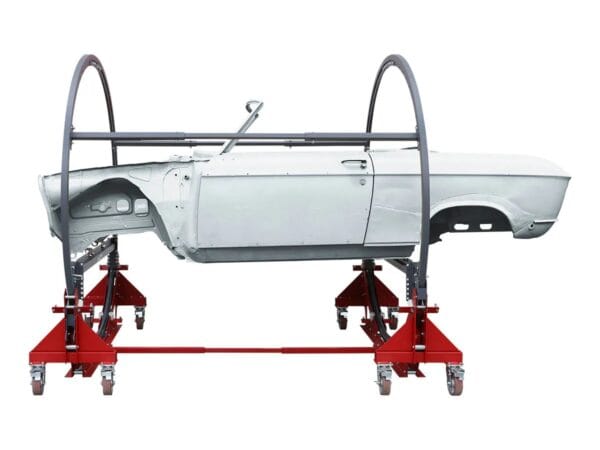

The segmented automotive rotisserie revolutionizes car restoration by allowing you to perform all body repair work and spray painting within a single, convenient mounting frame. In addition, its innovative design offers full 360° rotation, providing easy access to hard-to-reach areas of your vehicle. Furthermore, the modular, removable segments make it possible to move the entire assembly through low-clearance openings, such as standard domestic garage doors. As a result, this easy-to-use rotisserie streamlines repairs and restorations, making it an essential tool for mechanics and car enthusiasts looking to achieve professional-quality results.

Main Benefits

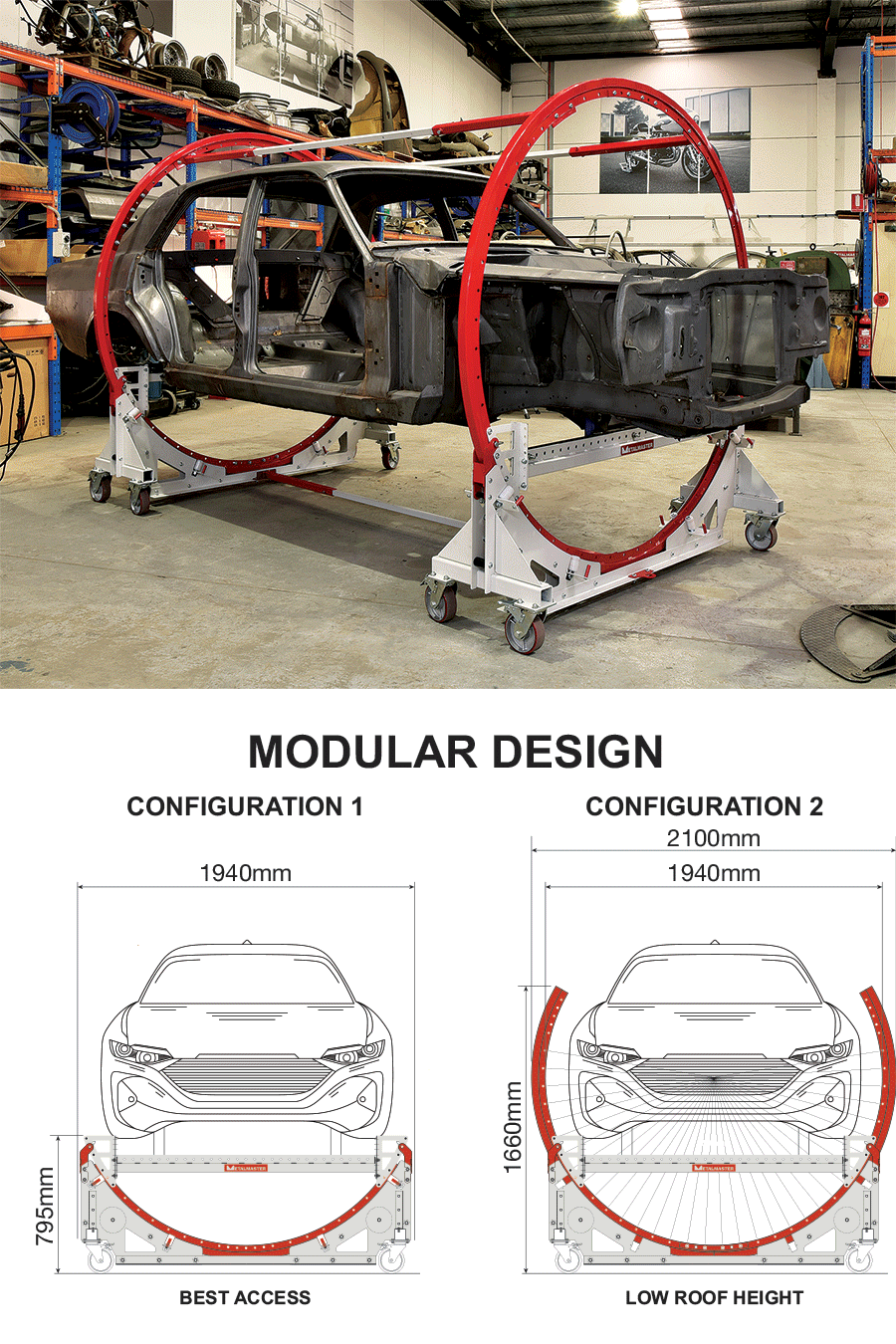

• Modular design that fits low-clearance openings, including most standard garage doors.
• Indexable rotation with 6-degree locking increments, allowing the vehicle to be secured at the ideal working angle.

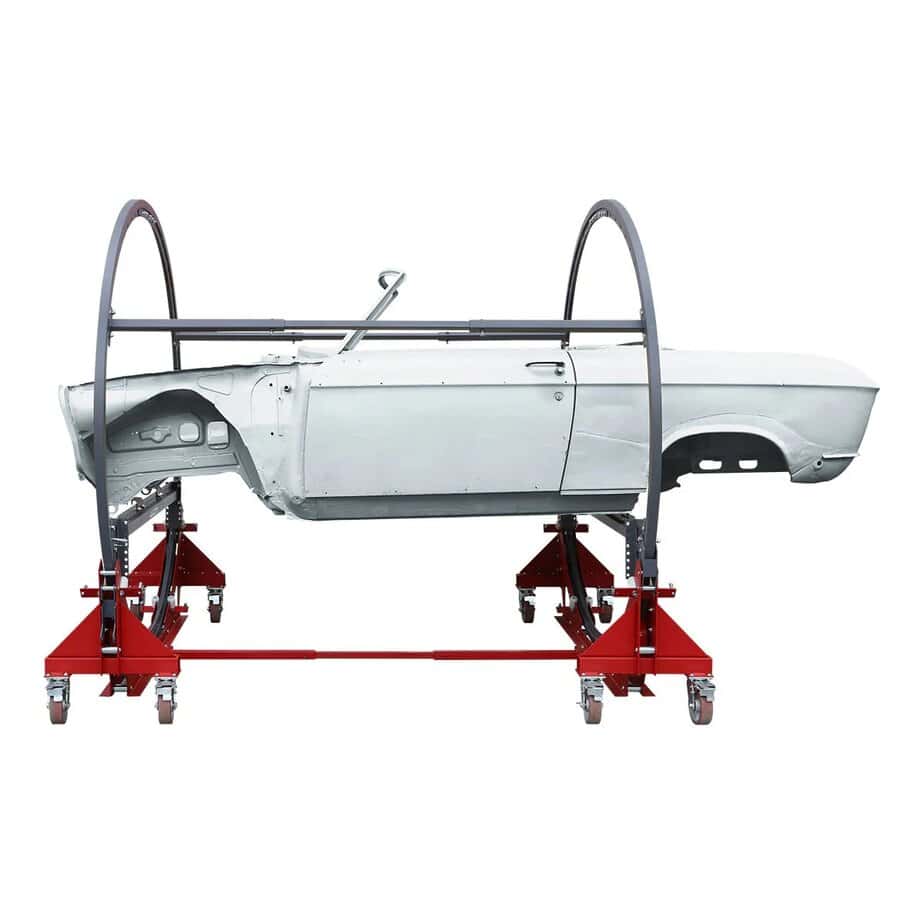

• Space-saving structure with no overhang beyond the chassis once mounted.

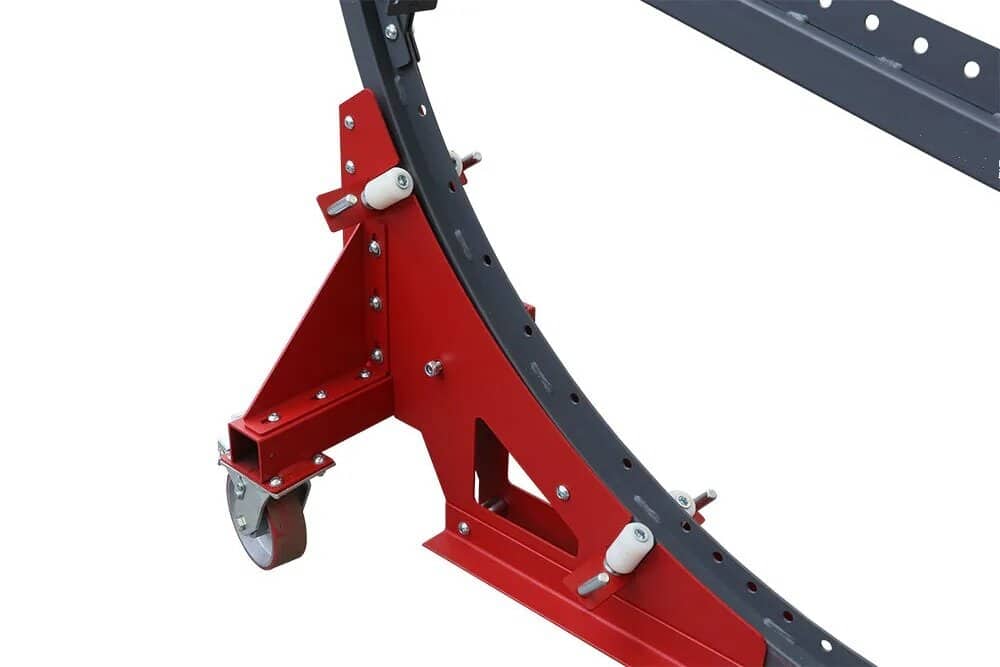

• Heavy-duty Ø150 mm castor wheels with integrated brakes for controlled, effortless movement.
• Adjustable cross beam that improves load balancing for safe, smooth rotation.
• Built-in lifting and tie-down points for easy moving, loading, and unloading.

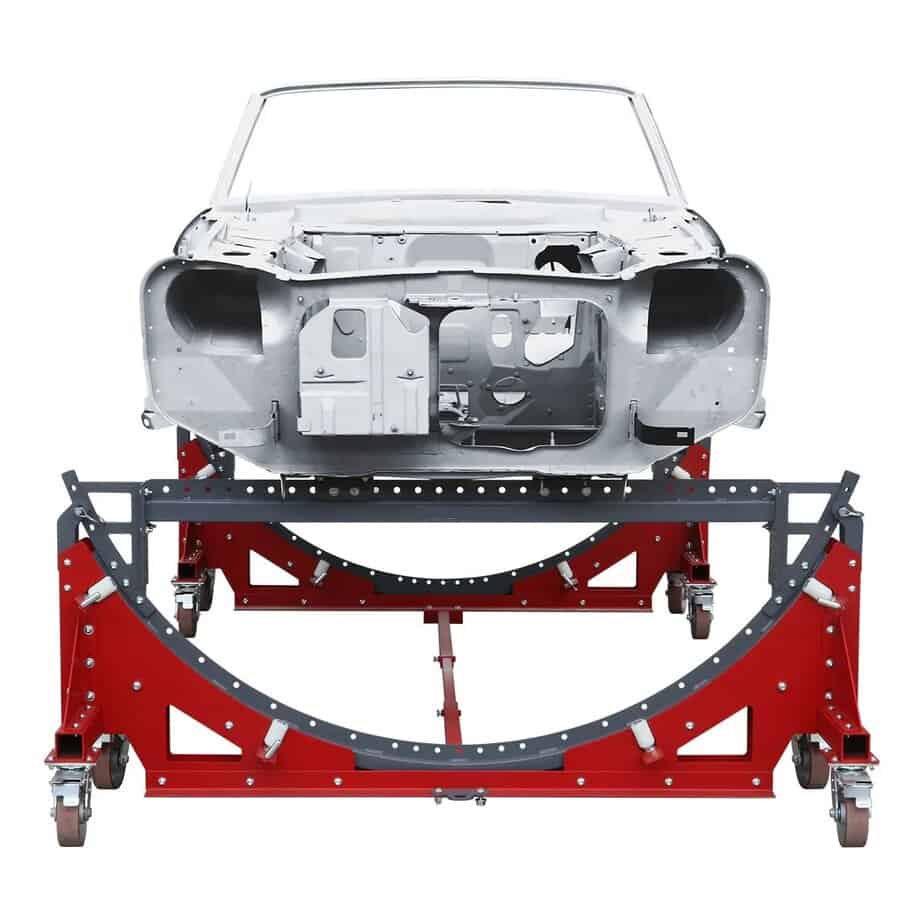

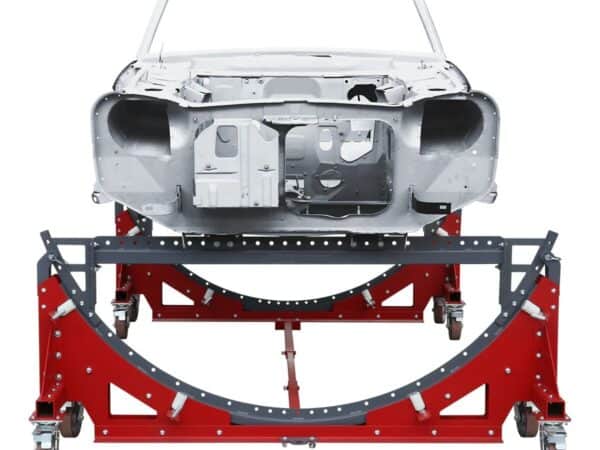

• Dismountable construction for quick pack-away and compact storage.

Technical features:

– Capacity: 1500 kg (750 kg each side)

– Adjustable width: min. 1940 – max. 3000 mm

– Inside ring diameter: 1940 mm

– Outside ring diameter: 2100 mm

– Wheel diameter: 150 mm

– Rotation angle: 360° (with 6 degree increments)

– Weight: 300 kg
